The development node is not installed in Kyocera (M2035dn, M2030dn)

Many users of Kyocera MFPs of the M2035dn, M2030dn brands may face the device’s failure to print, and the corresponding message on the device screen “The developing unit is not installed”. It can be assumed that the device, (in particular, the development unit) has failed, and it needs to be repaired at the service center, but this is not at all the case. In this article, I will explain why the message “Developing site is not installed” appears in Kyocera models M2035dn, M2030dn, and what needs to be done to correct the situation.

Узел проявки не установлен в Kyocera (M2035dn, M2030dn)

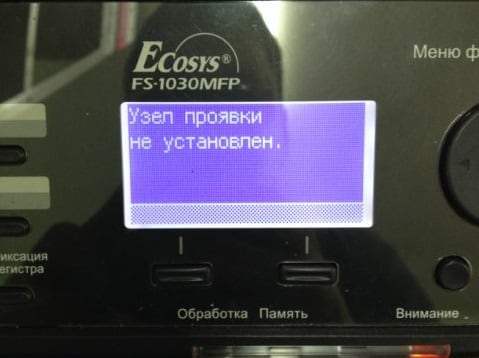

The message on the screen of the MFP looks like this

The content of the article:

Causes of Kyocera Dysfunction

Many users, having come across this problem for the first time, can ponder for a long time on the question of what this means “The development node is not installed”. Some users believe that the development unit of the MFP is broken, and it needs to be completely replaced, or the sensor of the development unit, which also needs to be changed, has broken. But usually this is not the case, and the appearance of the message “Development unit is not installed” has the following reasons:

  • The cartridge has run out or runs out of toner (i.e. a special black or colored powder, thanks to which the image is applied to the paper);
  • The development unit in Kyocera M2035dn, M2030dn is clogged , a lot of paint, powder, etc are stuck to the development unit;
  • Bent, depressed, damaged external contacts of the development unit ;
  • A non-original cartridge is installed in the device , due to which the MFP does not see the amount of remaining toner;
  • The development unit is broken (this happens quite rarely).

After we have decided on the causes of the “Development host not installed” error, we will proceed to the ways to correct this problem.

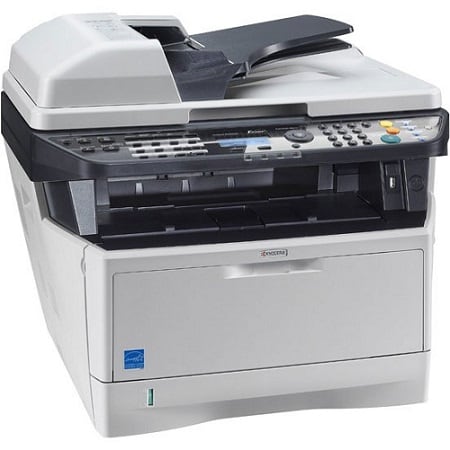

МФУ Кyocera
Multifunction Kyocera

The development node is not installed in Kyocera (M2035dn, M2030dn) - how to fix the error

What are some ways to get rid of the dysfunction I’m describing? Considering the reasons described above, I recommend to do the following:

  1. Wipe down the development unit . Remove the development unit from the device, wipe it gently with a dry cloth, and then set it back. Often after this, the error I describe disappears;

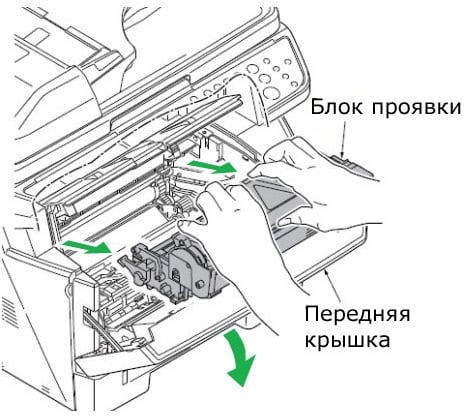

    Процесс изъятия блока проявки
    The process of removing the development unit
  2. Reset the error message by simultaneously pressing the "Ok" and "Start" buttons . This action usually has only a palliative effect, after turning off the device, this error is likely to appear again;
  3. Refill your cartridge . Remove your cartridge from the device, and take it to the nearest service center for refueling;
  4. Change your cartridge . Install an original or compatible cartridge instead of the old one (usually it is TK-1140), this allows you to get rid of the error “The development unit is not installed”;

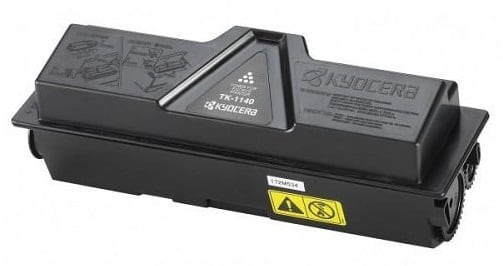

    Стандартный картридж для устройства
    Standard cartridge for the device
  5. If all else fails, I recommend contacting your Kyocera M2035dn, M2030dn printer to the nearest service center for more accurate identification of the problem and its subsequent elimination by a specialist.

Solution of the “Development Node Not Installed” error [video]

In the absolute majority of cases, the cause of the “Development unit not installed” problem is the lack of toner in the cartridge itself (it usually just ended). In this case, you must remove the cartridge from the multifunction device, and take it to the nearest service center for refueling. In extreme cases, the specified cartridge may fail, and then you may need to replace it completely. Use the tips listed above and you will again be able to enjoy a stable and reliable printing of your multifunctional device.
